Component Library

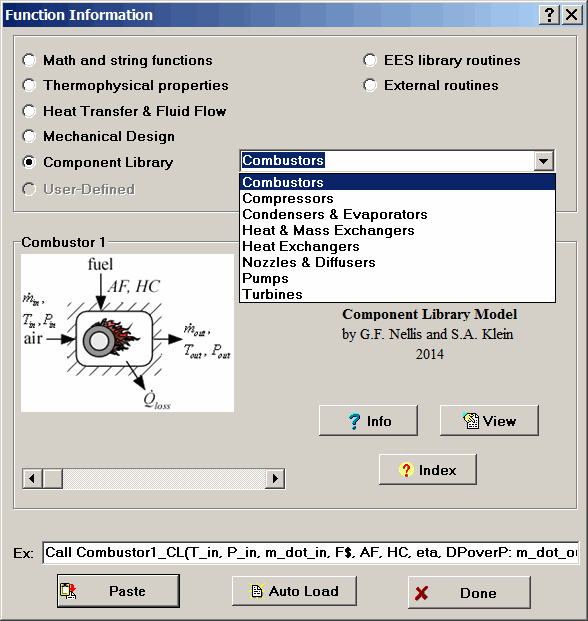

The Component Library is a collection of Functions, Procedures, and Subprograms that provide high level models of common components in energy systems.  This library is only operational in the Professional version.  Clicking on the Component Library button in the Function Information dialog will bring up the library index as shown.





Online help is provided for each model by clicking the Info button in the Function Information dialog.  Alternatively, this information is available on the F-Chart website.  Each model description provides a summary of its purpose, references, inputs, outputs, and an example.  Click the index button to show a picture list of all of the components.  Clicking on the picture links to the help information.
